1.Standard:GB/T 5023-2008,IEC60227,BS6004,DIN VDE 0281
2.Rated Voltage:300/300V
3.Application: Flexible cable
-for dry areas, used for purposes requiring special flexibility in conditions free of any mechanical stresses.
-Specially suitable for application in small devices with low mechanical loads and for connection of light household devices ,such as kitchen appliances, desk lamps, ceiling lamps, vacuum cleaners, office machines, radios etc., as long as H03VV-F is adapted to essential specifications of the device.

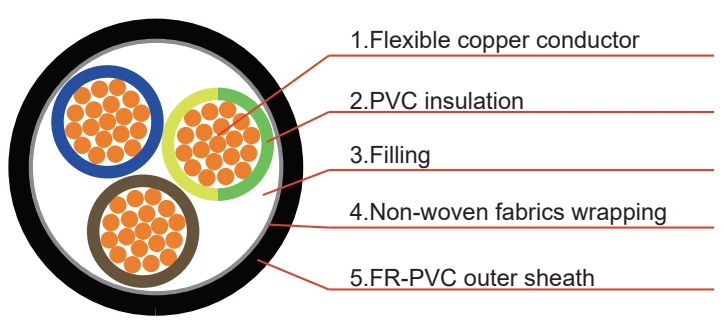

4.Construction:
|
- Bare copper conductor, fine wired stranded, class 5 acc. to IEC 60228 / HD 383 / DIN VDE 0295 (nominal diameter 0,20 mm) - PVC compound TI2 acc. to DIN VDE 0207 4. part / HD 21.1 S4, concentrically stranded cores color marked acc. to HRN HD 308 S2 / DIN VDE 0293-308, with or without yellow-green protective conductor - PVC compound TM2 for flexible insulated conductors acc. to DIN VDE 0207 part 5 / HD 21.1 S4 |
|
|
|
5.Core colour:
6.Technical Characteristics
|
2000 volts |
|
|
7.5 x O |
|
|
4 x O |
|
|
-5 degree to plus 70 degree |
|
|
-40 degree to plus 70 degree |
|
|
plus 160 degree |
|
|
IEC 60332.1 |
|
|
20 MΩ x km |
7.Cable Parameter
|
Conductor resistance at 20 degree |
resistance of insulation at 70 degree |
|||||||
|
|
min-max. |
|
||||||
|
|
||||||||
|
2 x 0,5 |
16 x 0,20 |
4,6 - 5,9 |
0,5 |
0,6 |
39,0 |
0,012 |
41 |
c.100 |
|
2 x 0,75 |
24 x 0,20 |
4,9 - 6,3 |
0,5 |
0,6 |
26,0 |
0,010 |
48 |
c.100 |
|
3 G 0,5 |
16 x 0,20 |
4,9 - 6,3 |
0,5 |
0,6 |
39,0 |
0,012 |
48 |
c.100 |
|
3 G 0,75 |
24 x 0,20 |
5,2 - 6,7 |
0,5 |
0,6 |
26,0 |
0,010 |
57 |
c.100 |
|
4 G 0,5 |
16 x 0,20 |
5,4 - 6,9 |
0,5 |
0,6 |
39,0 |
0,012 |
58 |
c.100 |
|
4 G 0,75 |
24 x 0,20 |
5,7 - 7,3 |
0,5 |
0,6 |
26,0 |
0,010 |
70 |
c.100 |
|
5 G 0,75 |
24 x 0,20 |
7,1 |
0,5 |
0,6 |
26,0 |
0,010 |
87 |
c.10 |
8.Production Progress
9.Certificates:
 |
 |
10.Packing:
-Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
-Drum size:
-Shipping Port:
-Sea freight:
